Feature

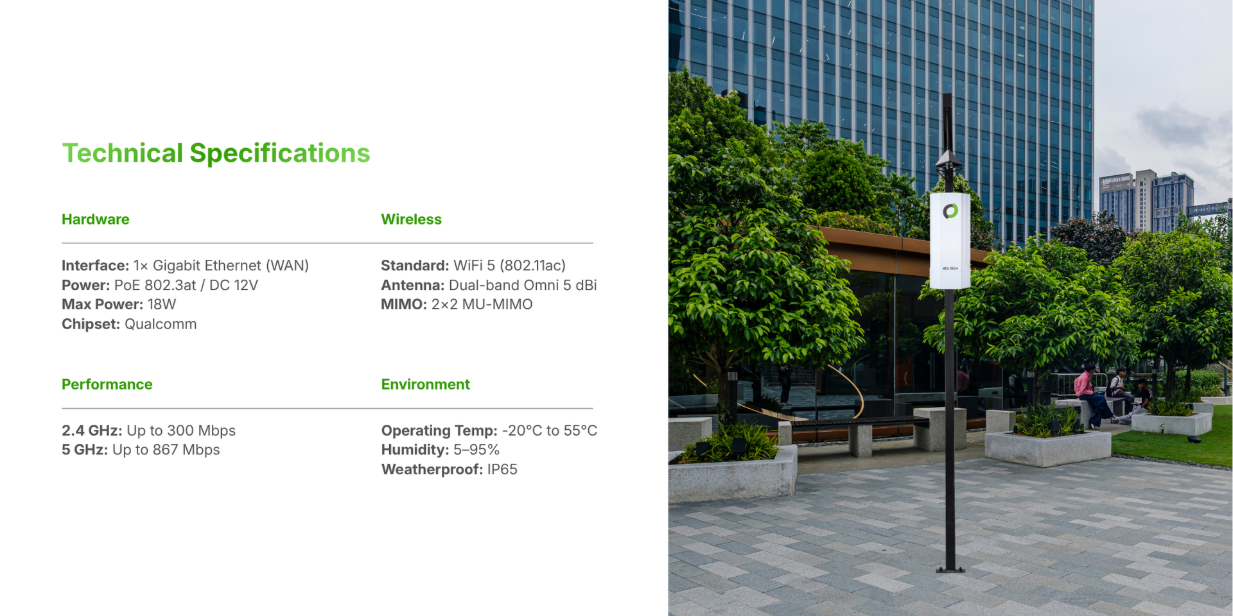

Specifications
| Mechanical | |
|---|---|
| Dimension | 145mm(W) x 315mm(D) x 80mm(H) |

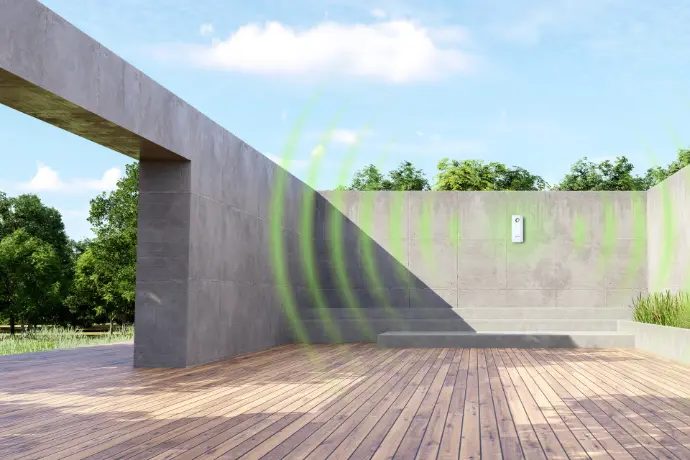

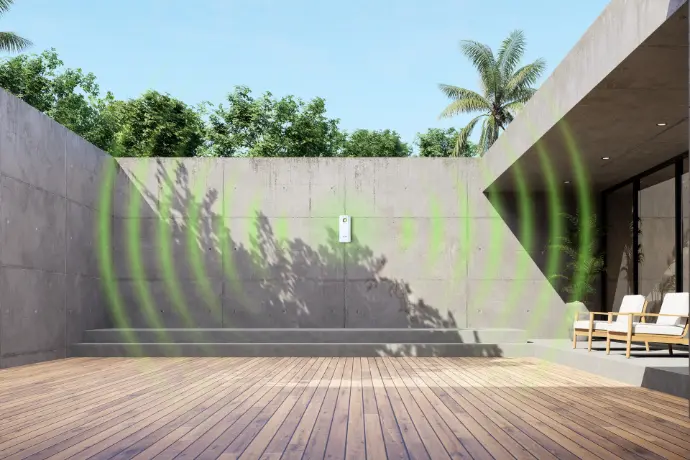

| Environment | Indoor/Outdoor |
| Enclosure Material | Plastic |
| Mount Material | Steel |
| Weather proofing | IP65 |
| Hardware | |
| Management Interfaces | Ethernet Wireless |
| Network Interfaces | 1GbE WAN (10/100/1000) RJ45 port 1GbE LAN (10/100/1000) RJ45 port |
| Buttons | Reset |
| Power Method | DC48V 802.3ar PoE (included) |
| Power Save | Supported |
| Max Power Consumption | 18 W |
| Operating Frequency |
2400 - 2483 MHz (2.4 GHz) 5725 - 5825 MHz (5 GHz) |
| TX Power(2dBm) |
23 dBm @2.4GHz (per chain) 22 dBm @5GHz (per chain) |
| Antennas | |
| 2.4 GHz | Internal Dual-Band Omni Antennas |
| 5 GHz |
5 dBi (MIMO 2X2) 5 dBi (MU MIMO 2X2) |
| Radio Rate | |
| 2.4 GHz | Up To 300 Mbps |
| 5 GHz | Up To 867 Mbps |

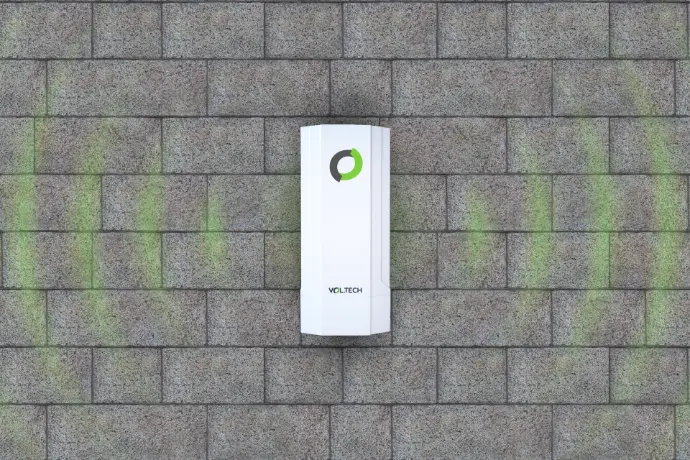

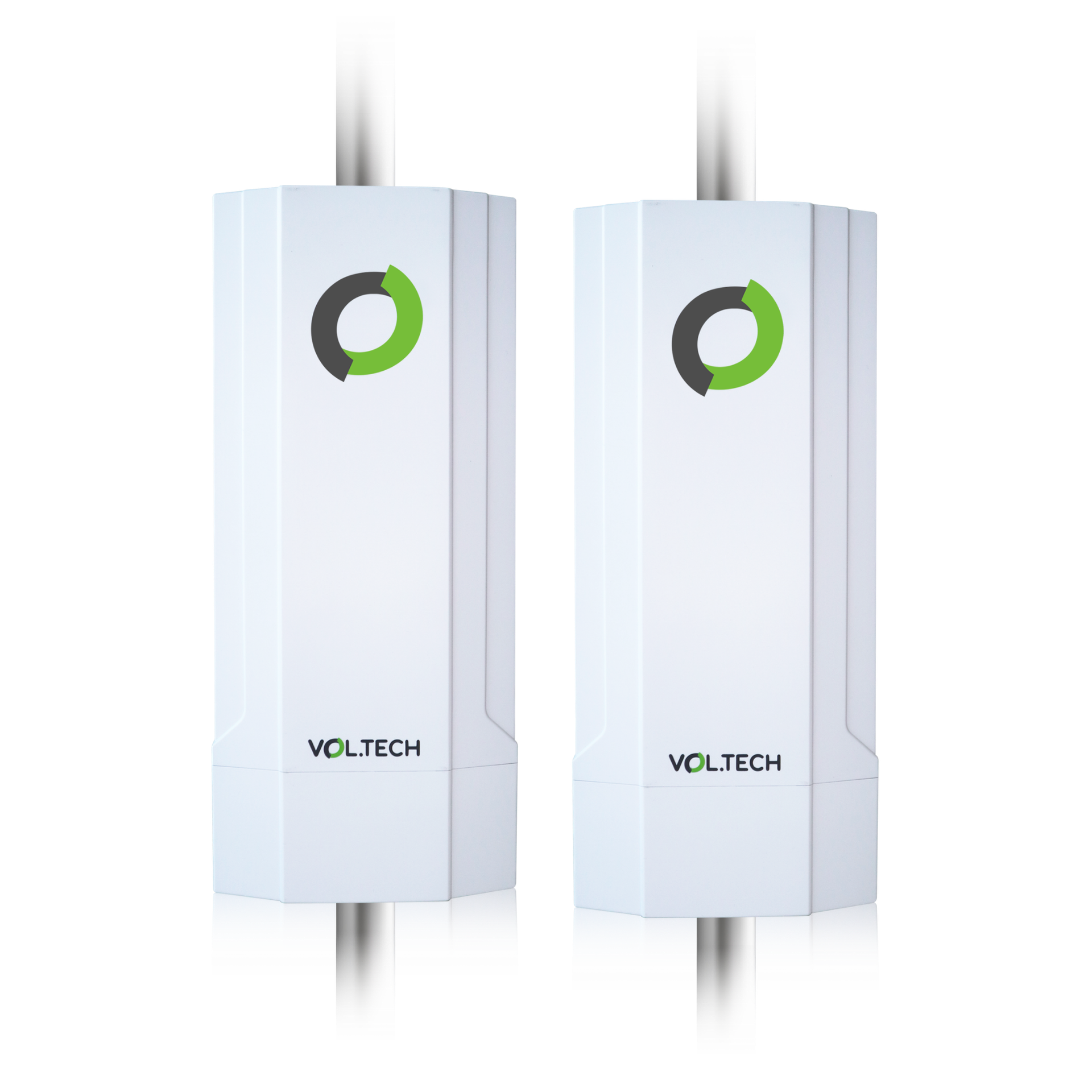

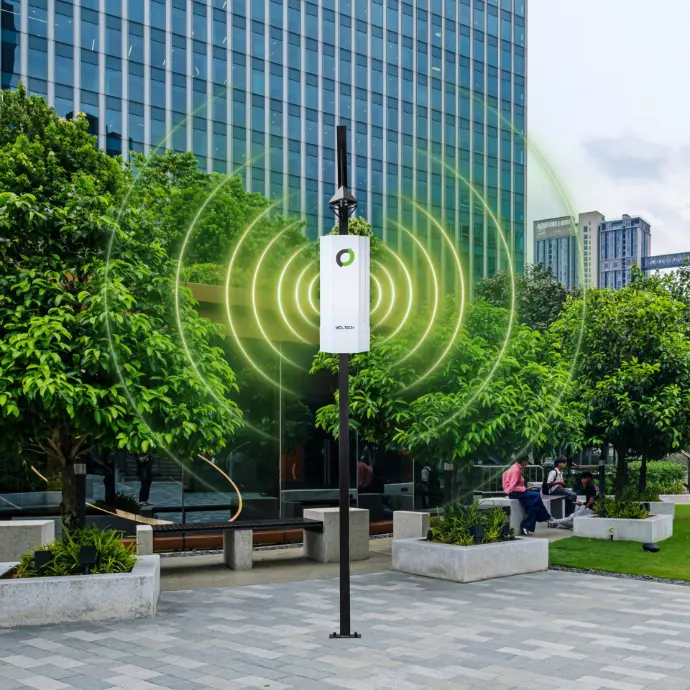

| Mounting | Wall/Pole (Kits Include) |
| Operating Temperature | -20C to 55C |
| Operating Humidity | 5 to 95% Noncondensing |
| Software | |
| Wi-Fi Standards | a/b/g/n/ac wave2 (MU-MIMO) |
| Wireless Security | WPA/WPA2/WAP3, TKIP/AES, Personal, Enterprise |
| BSSID | Up to 8 per radio |
| Certifications | SDPPI |
| VLAN | 802.1Q |
| Band Steering | Available |
| Advanced QoS | Per-User Rate Limiting |
| Guest Traffic Isolation | Supported |
| WMM | Voice, Video, Bess Effort, and Bacground |
| Concurrent Clients | 250+ |
| Software Guide | Cluster, ESP Cloud |
